Our Newly Launched Product

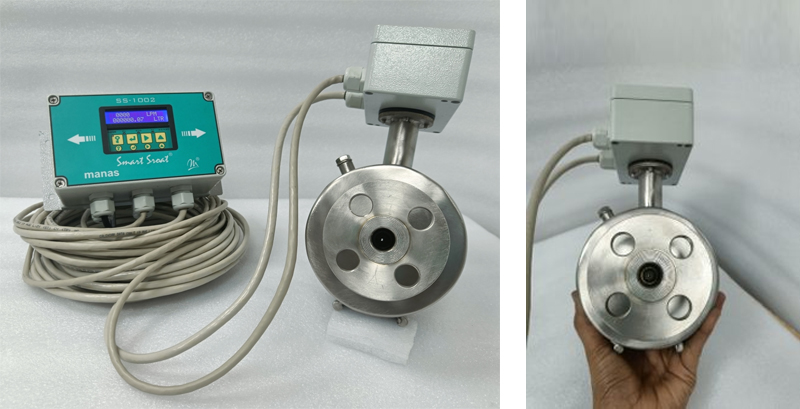

Battery Operated Electromagnetic Flow Meters SS1020

Model : SS1020
Description :
Manas have now introduced a new type of Battery Operated Electromagnetic Flow meter series. The new type of flow transmitter is SS1020. It is available with integral or remote version of transmitter. Battery Operated Electromagnetic Flow meter is specifically designed where Electric supply is not available & accurate flow measurement is essential.

Features :

  • Battery Operated ( Battery Life 5 years ).
  • Sizes Available from ½" to 40".
  • Highly Accurate and Extremely Linear.
  • Micro-Volt signal proportional flow rate from primary flow sansor.
  • Various types of Liner & Earth Electrode, both options are available.
  • Empty tube detection is also provided


Specifications :

Sr. No. METERING TUBE
:
SROAT 1000
1. Meter Size
:
DN15-DN1000
2. Media Pressure
:
Upto DN 80- PN 40
From DN 100 to DN 200 - PN 16
DN 250 to DN 1000 - PN 10
3. Media Temperature
:
Hard Rubber : 0 - 90°C.
PTFE              : 0 - 150°C.
PFA                 : 0 - 200°C.
4. Ambient Temperature Range
:
0 - 50°c
5. Materials : Pipe
:
SS 304 [non-magnetic ]
                    Electrode
:
SS 316 / SS316L / Hastelloy C or Other ( As per requirement ).
                     Liner
:
Hard Rubber / PTFE / PFA.
                     Flanges
:
Carbon Steel / SS 304 / SS 316 / SS 316 L .
                     Body Material
:
Carbon Steel, P. U. painted. / SS 304 / SS 316
6. Flange Standard
:
ANSI / DIN / BS Flanges ( As per requirement )
7. Ingress Protection
:
IP-68 For Primary Flow sensor
  TRANSMITTER SS1020
1. Mounting
:
Remote Mounted [standard]
Integral mounted [on request]
2. Min. Media Conductivity
:
≥ 20 µs / cm
3. Output
:
NA
4. GSM Facility
:
Optionally available
5. Local Display
:
2 line LCD Display for instantaneous Flow rate, Totaliser, Engg. units, Fault Messag, ect.
6. Flow Velocity Range
:
0.2 m/s to 12 m/s
7. Accuracy
:
±0.1% of Actual Flow Rate between 100% to 10% of calibrated range
8. Power Supply
:
Battery Powered (5 years Battery Life )
9. Ingress Protection
:
IP-67 For Flow Transmitter



Economical Range Of Electromagnetic Flow Meter SMART JAL Ec (SJ Ec - 100)

economical-electromagnetic-flow-meters

Model : SMART JAL Ec
Description :
Manas have now introduced a new type SMART JAL Ec Flowmeter. SMART JAL EC meter's are commonly used in Treated Effluent, Sewage water, Waste water etc..
This type of flow meter also work on the FARADAY'S LAW OF ELECTROMAGNETIC INDUCTION.

Features :

  • No moving parts.
  • Economically Priced.
  • Do not equire much upstream and downstream straight Lengths.
  • Very fast Operation / small response time.
  • Long life hence cost effective.
  • Engineered in PP
  • Flowmeter does not obstruct flow, so it can be applied to clean, sanitary, dirty, corrosive liquids.
  • Fully Vibration proof.


Product Details :

Minimum Order Quantity
:
5 Number
Display
:
Digital
Brand
:
Manas
Model
:
SMART JAL Ec
Meter Size
:
DN32 to DN50
End Connections
:
Threaded, BSP (M)
Accuracy
:
1% of Actual Flow Rate
Power Supply
:
230Vac/110Vac

Send Enquiry

SPECIFICATIONS :

1. Meter Size
:
DN 32 to DN 50
2. End Connections
:
Threaded, BSP (M)
3. Protection Class
:
IP-66
4. Cable Entries
:
2 no. for Integral Transmitter
1 no. for Remote Transmitter
5. Media Conductivity
:
≥ 20 µs / cm
6. Display
:
For Integral : 16 x 2 rows LCD Display for Instantaneous Flow Rate, Totaliser, Engg. Units, Fault Massages, etc.
For Remote : 6 Digit, 0.3", 7 Segment, LED for Totalisation.
                          4 Digit, 0.5", 7 Segment, LED for Flow Rate Indication.
7. Output
:
Pulse O/P α Flow Rate
a) Pulse Output Open Collector NPN.
                         OR
b) 4-20mA DC, In Max. 600 Ω Load, Isolated, Proportional to Flow Rate.
8. Accuracy
:
±1% of Actual Flow Rate between 100% to 10% of calibrated range.
9. Media Pressure
:
10 Bar
10. Empty Tube Detection
:
Provided
11. Power Supply
:
230 V ac/ 110 V ac, ±10%, 50 Hz, S. P.
