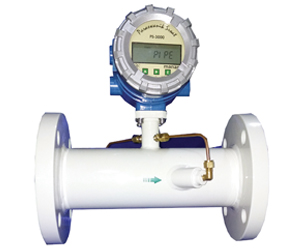

Model : PS 3000 (Paraswanik SROAT)
Description :
Manas have now introduced a new Bulk type Ultrasonic Flow Meter Series. This meter operates on digital process technology with stable & permanent Piezo-Seal sensor. It is available with integral version of transmitter.

Bulk type Ultrasonic Flow meter is a battery operated and transit - time Flow meter utilizing advanced digital processing technology. It is specifically designed where Electric supply is not available & accurate flow measurement is essential.

Features :
  • Battery Operated ( Battery Life 5 Years )
  • Sizes Available from 2" to 14".
  • Maintenance - free meter where no external power sources are available.
  • Self-adjusting transducer receiving circuit continually adapts to changing pipe diameters due to scaling or corrosion.
  • The meter contains No moving parts & does not require any external power supply.
  • Highly Accurate & Reliable.
  • Fast response to flow transits.
  • Unique housing design rated to IP 68.

Technical Specifications

Meter Size
:
DN 50 - DN 350
Pressure
:
Up to DN 80 - PN 40
From DN 100 to DN 200 - PN 16
From DN 250 to DN 350 - PN 10
Media Temperature
:

5°C to 70°C ( for Water )

Ambient Temperature
:
0 - 50°C
Output
:
RS485, 4-20 mA, Pulse for total flow. ( All outputs need external power supply )
GSM Facility
:

Optionally Available.

Local Display
:
2 Line LCD Display For instantaneous Flow rate, Totalizer, Engg. Units, Fault messages, etc.
Accuracy
:
±1 % of Actual Flow Rate
Repeatability   ±0.2 % of reading.
Flow Velocity   0.2 m/s to 12 m/s
Power Supply   3.6 V Lithium battery ( Up to 5 years life )
Ingress Protection   IP 68
