Flow Indicating Totalisers

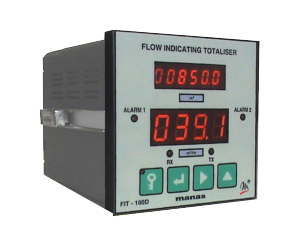

Flow Indicating Totalisers, FIT-100D SERIES

The FIT -100 series is a compact sized Totaliser. Totaliser is designed to accept input from DP or Flow Transmitter. It has an option of L.C.D or L.E.D Display. Totaliser can accept input from transmitter operating in Linear or Square Root mode. Flow is integrated to 8 Digit Totaliser, from which 6-Digits can be easily viewed on Display window of Totaliser and remaining 2 digits can be viewed by simple press of an enter button. The 4-Digit Indicator is provided to indicate the instantaneous Flow rate in % or in any Engineering Unit.


Flow Indicating Totalisers
ADVANTAGES :
• Compact in Size
• Field Programmable Parameters.
• Virtual 8 digit Display available to monitor Totalised Flow.
• Isolated 4-20mA D.C. output proportional to Flow Rate.
• Linear or Square Root operation.
• Better Resolution with 4 Digit Display for instantaneous Flow Rate
• Serial Interface with Computer through MODBUS RTU.

TECHNICAL SPECIFICATIONS :

INPUT
:
4-20 mA d.c
AUXILLARY OUTPUT
:
Isolated 4 20 mA d.c. proportional to flow rate.
ALARM SETTINGS*
:
2 Nos. on flow rate with internally fixed hysteresis of 0.5%, typical.
BATCHING**
:

2 Batch Setting possible with 2 independent Relay for coarse and fine setting.

TRANSMITTER SUPPLY
:
24 V D.C @30 mA suitable to power one two-wire Transmitter.
OPERATION
:
Linear or Square Root , Programmable from front key pads.
DISPLAY :
:
1) 4 digit,7 segment,0.5”LED display for instantaneous flow rate. And 6 digit, 7 segment, 0.3” LED display for totalisation with programmable decimal point & adjustable count rate, Facility to view additional 2 digits of totalised flow available on users will.
2) 16x2 Line LCD option available.
ACCURACY
:
±0.25% of F.S. for flow rate as well as totalisation.
KEYBOARD
:
4 Nos. of Keys for Parameter Programming.
STORAGE FACILITY
:
Program and Data is stored in the EEPROM.
OPERATING TEMP.
:
0 to 50 °C
TEMPERATURE DRIFT
:
±0.015 % / °C max of F.S on flow rate display.
HUMIDITY
:
90% R.H max of F.S on the flow rate Display
MAINS SUPPLY
:
Universal Supply (85 V AC to 265 V AC at 50 Hz.)
MOUNTING
:
Flush Panel.
DIMENSIONS (in mm)
:
Bazel 96(H) x 96(W)
Cutout- 92(H) x 92 (W)
Depth- 150 including terminal length.
CONSTRUCTION
:
Plastic Molded
COMMUNICATION PORT
:
RS-232 or RS-485 with MODBUS RTU PROTOCOL
*and **: Note that Alarm and Batching Option are not available Simultaneously in single Totaliser Unit .

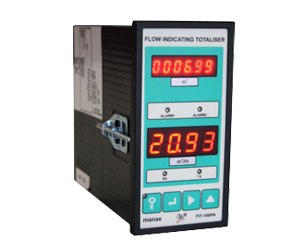

Flow Indicating Totalisers, FIT-100P SERIES


• Isolated 4-20mA D.C. output proportional to Flow Rate.

• Universal Power Supply.

• Alarm / Batching facility.

• Linear / Square root operation.

• Serial Interface with Computer through MODBUS RTU Protocol.

• Mounting: Flush panel.

• Password protection is provided for all modes.

• Available with data logging facility.

• Dimensions :138mm (H) x 68mm (W) x 185mm (D)

• Dimensions : 92mm(H) x 92mm(W) x 150mm(D)

Flow Indicating Totalisers, FIT-100P SERIES

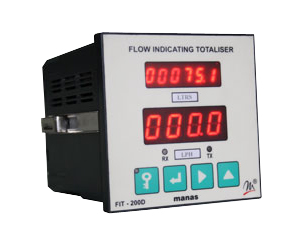

Flow Indicating Totalisers, FIT-200D SERIES


• Available with pulse input (0.01Hz TO 300Hz), ISOLATED.

• Isolated 4-20mA D.C. output proportional to Flow Rate.

• Universal Power Supply.

• Batching facility available.

• Linear / Square root operation.

• Serial Interface with Computer through MODBUS RTU Protocol.

• Mounting : Flush panel.

• Password protection is provided for all modes.

• Dimensions : 92mm(H) x 92mm(W) x 145mm(D)

Flow Indicating Totalisers, FIT-200D SERIES
