Loop Powered Indicators

The Model 2211-EX Digital Indicator enables the process variables to be displayed locally inside the plant; in any engineering units. These are powered by the 4 -20 mA d.c. signal from a 2-wire transmitter, requiring no external supply or batteries. The drop across the terminals is less than 1V & being non-voltage producing device, can be directly used in hazardous area. The unit is housed in aluminium casted weather-proof / Ex-proof casing. Another model 2211-IS is the panel mounting type.

SALIENT FEATURES :
• 4-20mA d.c. Input. Drop less than 1 V.
• Weather-proof / Ex-proof Al-casted enclosure.
• 3½ digit LCD display.
• Built in reference for easy calibration.
• Any Full Scale Calibration with DIP Switches.

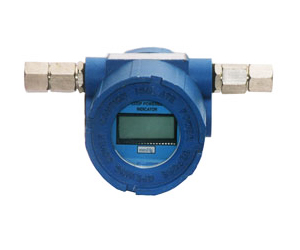

Loop Powered Indicator

TECHNICAL SPECIFICATIONS :

INPUT
:
4 - 20 mA d.c.
LOOP VOLTAGE DROP
:
Less than 1V d.c.
DISPLAY
:
3½ digit LCD, 0.5” height.
ACCURACY
:

Better than ±0.25% of F.S.

RANGE ADJUSTMENT
:
±200 to ±1999 by DIP Switches.
ZERO ELEVATION/SUPPRESSION
:
-1000 counts to +1000 counts.
OPERATING TEMP.
:
0 to 50 °C.
TEMPERATURE DRIFT
:
±0.02 % / °C max. of F.S.
HUMIDITY
:
90 % R. H. max. non condensing.
TERMINAL ENTRY
:
¾” ET. Others on request.
TERMINALS
:
Suitable for 1.5 mm² wires.
MOUNTING
:
Field, 2” Pipe mounting (2211-EX)
Flush Panel mounting (2211-IS)
DIMENSIONS
:
Refer drawings overleaf.
ENCLOSURE
:
Aluminium casted weather-proof (IP 65). Ex-proof (class IIA & IIB).: 2211-EX
Powder coated, Steel sheet construction : 2211-IS
** Due to continuous developments, specifications are subject to change without prior notice.
