The Digital draft gauge 4475-PX accepts the draft pressure input as the signal and displays it in terms of mmwc. It also delivers 4 -20 mA output proportional to the Draft. The Draft transmitter is a field mounting unit and is a two wire system delivering 4-20mA output proportional to Draft Input. The Transmitter can be mounted in the field thereby avoiding long lengths of impulse lines and also errors due to the lengths.

Principal Features :
  • Digital Display (so No Confusion)
  • Much Better Accuracy compared to Mechanical Gauges.
  • Wide Range of Draft measurement possible.
  • Typically, ±50 mmwc to ± 750 mmwc.
  • Transmitter being Field Mounted, Errors due to Long Impulse lines are avoided.

Send Enquiry

Download
* Common Technical Specifications For Gauge and transmitter :
Input
:
 Draft Pressure
Input Range
:
 ±50 mmwc to ± 750 mmwc.
Input Connection
:
 ¼” BSP
Output
:
 4- 20 mA proportional to Calibrated Range.
Accuracy
:
 ±2.5% of F.S.
Operating Ambient
:
 0 to 50°C.
Temperature Drift
:
 ±0.1 % of F.S.
Humidity
:
 90% R.H. Non condensing.


* Technical Specifications for Draft Gauge. :

Display
:
 3½ digit, 7 Segment, ½”, Red LED Display.
Power Supply
:
 230 Vac/110 Vac, 50 Hz., Single Phase.
Output
:
 4-20 mA in 600 Ohms max load.
Mounting
:
 Flush Panel.
Enclosure
:
 Powder coated, sheet steel as per DIN43700.
Dimensions
:
 Bezel : 144(H) x 72(W)
Cutout
:
 138(H)x 68(W)
Depth
:
 135

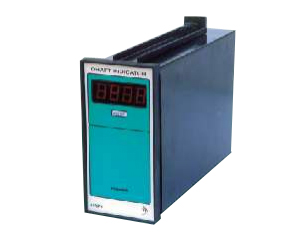

draft-gauge

* Technical Specifications for Draft Transmitter. :

Power supply
:
 12 to 24 Vdc/30 mA, suitable for two wire system.
Output
:
 4-20 mA.- in two wire system.
Load Resistance on Output
:
 600 Ohms max. at 24Vdc Supply.
Enclosure
:
 Aluminum Extruded with black Anodizing.
Dimensions
:
 200(H) x 25(W) x 54(D).
Mounting
:
 Wall Mounting.

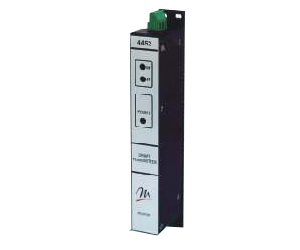

draft-transmitter

All dimensions are in mm
