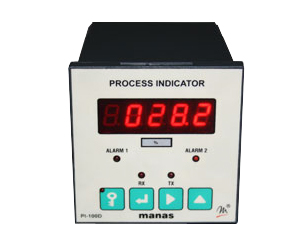

The PI - 100 D series is a compact sized Process Indicator, designed to accept input from any two wire or four wire Transmitter. It has a seven segment, ½”, bright LED Display to read the Process Value in terms of Engineering Units or percent as is desired. The alarms can be set anywhere from 0% to 100 % with both High or both Low or one High and one Low configuration. The Output , 4-20 mA proportional to PV is isolated from input and power connections
Advantages :
- Compact in Size
- Field Programmable Parameters.
- Linear/ Square Root operation programmable.
- 4 Digit Display available to monitor Process parameter
- Value from -9999 to 9999.
- Isolated 4-20mAD. C. output proportional to Process Variable.
- Adjustable Two Alarm Settings with various options of Operation.
- Transmitter Supply 24 Vdc suitable for
- 2 wire as well as 4 wire Transmitter.
- Serial Interface with Computer through MODBUS RTU.
| INPUT | : |
4-20 mAd.c |
| AUXILLARYOUTPUT | : |
Isolated 4-20 mAd.c. proportional to process variable. |
| ALARM SETTINGS | : |
2 Nos. on process variable with internally fixed hysteresis of 0.5%, typical. |
| TRANSMITTER SUPPLY | : |
24 V D.C @ 100 mAsuitable to power one two-wire Or one four-wire Transmitter. |
| OPERATION |
: |
Linear or Square Root , Programmable from front key pads. |
| DISPLAY | : |
4 full digit, 7 segment, 0.5” LED display for Process Variable to read values from -9999 to +9999 with programmable decimal point. |
| ACCURACY | : |
±0.1 % of F.S. |
| KEYBOARD | : |
4 Nos. of Keys for Parameter Programming. |
| STORAGE FACILITY | : |
Program and Data is stored in the EEPROM. |
| OPERATING TEMP. | : |
0 to 50 °C |
| TEMPERATURE DRIFT | : |
Less than ±0.015 % / °C max of F.S. on PV display. |
| HUMIDITY | : |
90% R. H. max non condensing. |
| MAINS SUPPLY | : |
Universal Supply (85 V AC to 265 V AC at 50 Hz.) |
| MOUNTING | : |
Flush Panel. |
| DIMENSIONS (in mm) | : |
Bazel - 96(H) x 96(W) Cutout - 92(H) x 92 (W) Depth - 150 including terminal length. |
| CONSTRUCTION | : |
Plastic Molded |
| COMMUNICATION PORT | : |
RS-232 or RS-485 with MODBUS RTU PROTOCOL |
