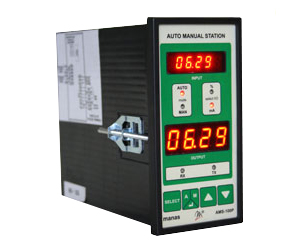

Auto Manual Station, Series - AMS-100

• Input - 4 – 20 mA dc, Output - 4 – 20 mA dc.

• Display - 4 Digit, 0.3”, 7 segment LED.

• Accuracy - ± 0.25 % of Full Scale ± 1 LSD.

• Power Supply - 85V to 265V AC, 50Hz, Single Phase.

• Mounting - Flush Panel.

• Mode Selection - Auto / Manual, Programmable Indicated by Separate LED.

• Serial communication port, RS 232/RS-485 with MODBUS RTU protocol.

• In Auto Mode, output proportional to input, no adjustment.

• In Auto Mode, output proportional to input, no adjustment.

• Manual to Auto mode with selectable rate in percent/sec.

• AMS-100D : Polycarbonate as per DIN 43700,
• Dimension: 92mm (H) x 92mm (W) x 150mm (D).

• AMS-100P : ABS enclosure,
• Dimension: 138mm (H) x 68mm (W) x 185mm (D).
