Ultrasonic Flow Meter

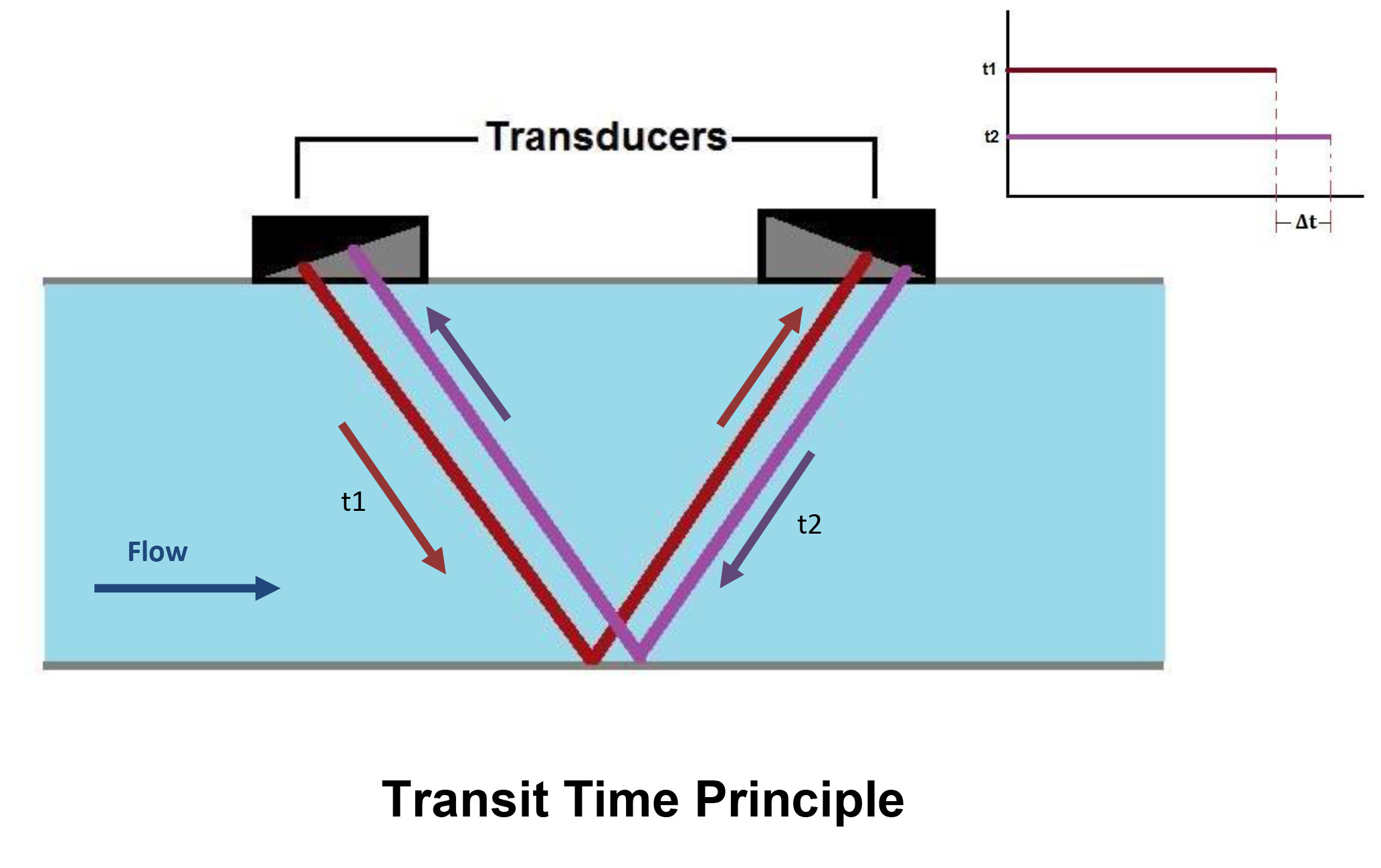

Ultrasonic flow meter works on the Transit Time or Time of Flight principle. The Flow meter unit utilizes two transducers that functions as both Ultrasonic transmitter and receiver. The transducers are either clamped on or inserted to the outside surface of the closed pipes. The transit time flow meter measures the time it takes for an ultrasonic signal transmitted from one transducer to cross the pipe and be received by second transducer. The flow is then measured by comparing the upstream and downstream time of Ultrasonic signal. With no flow through the pipe the transit time would be equal in both directions

For measuring the Flow of the medium, two ultrasonic pulses are sent through the medium, one in the flow direction and other in the opposite direction.

The transit time of the two pulses are then measured. The transit time difference Δt between these two pulses gives the average flow velocity on the propagation path of the Ultrasonic signals. This can be used to obtain the average flow velocity on the cross section of the pipe, which is proportional to the volumetric flow.



Trasnsducer Types :

  • Clamp on Type : The transducers are clamped on the outside surface of the closed pipe.

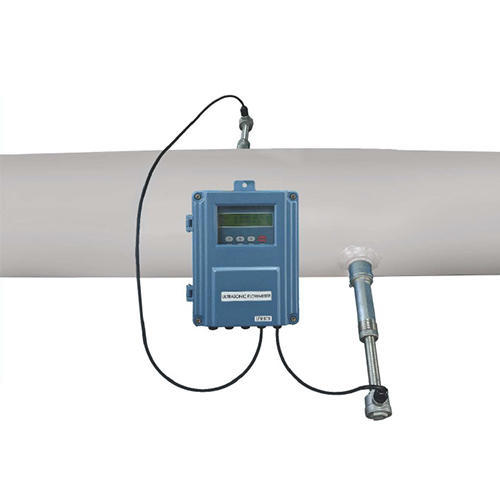

  • Insertion Type : The transducers are inserted in the surface of the closed pipe
  • Full Bore Type : The transducers are aligned diagonally on the surface of the closed pipe

Product Details :

  • Brand : Manas
  • Display : Digital
  • Type : Handheld
  • Ingress Protection : IP 68

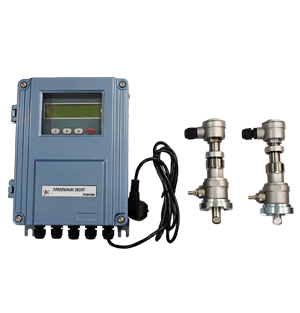

We have introduced Ultrasonic Flow Meter.

Product Details

  • Brand : Manas
  • Display : Digital
  • Accuracy : 1%
  • Output : 4-20 mA
  • Linearity : Better than 1%
  • Suitable Temperature : -40 to 160 degrees Celsius

Other Details:

  • It works on Transit Time or Time of Flight principle.
  • It utilizes two transducers that functions as both Ultrasonic transmitter and receiver.
  • The transducer is inserted in the surface of the closed pipes.
  • The transit time flow meter measures the time it takes for an ultrasonic signal transmitted from one transducer to cross the pipe and be received by second transducer.
  • The flow is then measured by comparing the upstream and down stream time of Ultrasonic signal.
  • With no flow through the pipe the transit time would be equal in both directions.
