Mass Flow Integrators, Steam, Gas Flow Totalisers, Electromagnetic Flow Meters, Water Mass Flow Computing Unit, Manufacturer, Exporter, Supplier, Pune, Maharashtra, India

Mass Flow Integrators

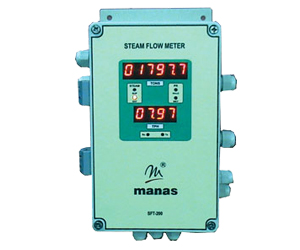

Steam flow totaliser, Series - SFT-200 (Wall /Panel Mounting)

Electromagnetic Flow Meters [INSERTION TYPE] Series- Sroat 1000i

• Suitable For Saturated & Superheated Steam.

• Three nos. of 4-20 ma dc i/p from DP / Flow transmitter, Pressure transmitter,   Temperature transmitter/RTD PT-100.

• Universal power supply.

• Isolated 4 – 20 mA output proportional to Flow rate.

• Accuracy of ± 0.25 % of Full Scale

• 4 digits LED display for flow rate & 6 digits for total flow are available.

• Linear or Square Root operation.

• Serial Interface with Computer through MODBUS RTU Protocol.

• The unit has two alarms, configured on pressure input.

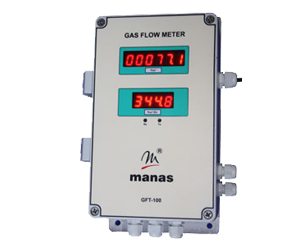

Gas flow totaliser, Series - GFT-100 (Wall /Panel Mounting)


Electromagnetic Flow Meter [INSERTION TYPE] Series- Sroat 1000i

• Suitable For compressed gas & air

• Linear or Square Root operation.

• Accuracy of ± 0.25 % of Full Scale.

• Three nos. of 4-20 ma dc i/p from DP / Flow transmitter, Pressure transmitter,   Temperature transmitter/RTD PT-100.

• Universal power supply.

• Isolated 4 – 20 mA output proportional to Flow rate.

• 4 digit LED display for flow rate & 6 digit for total flow is available.

• Serial Interface with Computer through MODBUS RTU Protocol.

• Two numbers of alarms is available on instantaneous flow rate.

• If Flow rate exceeds the set reference flow, the lower 4 digit Display for Flow rate   blinks.

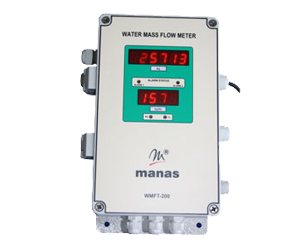

Water mass flow computing unit - WMFT-100


Electromagnetic Flow Meter [INSERTION TYPE] Series- Sroat 1000i

• Suitable For boiler feed water with density compensation.

• Online Computation For density Reducing Errors in Measurement Due To Pressure &   Temperature.

• Isolated 4-20mA D.C. output proportional to Flow Rate.

• Linear or Square Root operation.

• Availability of panel & Wall mounting.

• Serial Interface with Computer through MODBUS RTU Protocol.

• Two alarm settings are available and single alarm output is available.

• If Flow rate exceeds the set reference flow, the lower 4 digit Display for Flow rate   blinks.
